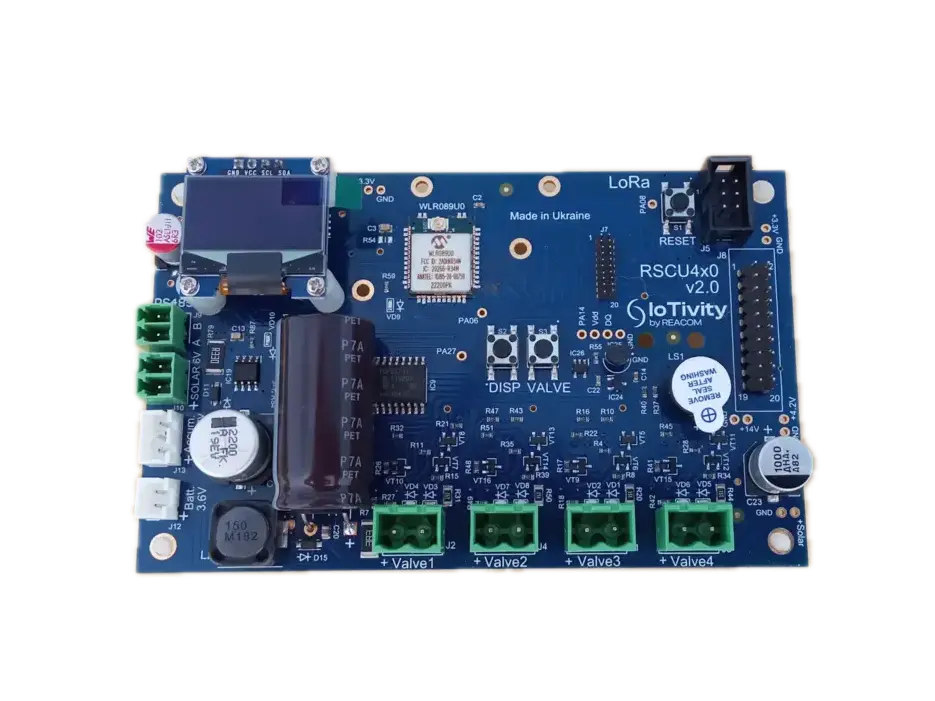

Controller for water valves RSCU4x0
The RSCU4x0 offers several advantages as:
- Control of powerful devices – 3-phase motors, pumps, heaters, lighting, ventilation
- Connection of sensors of pressure, light, humidity, temperature, etc. from other manufacturers
- Connection of water meters, weather stations
- Our willingness and ability to integrate our product into your existing irrigation system
Other characteristics
All other characteristics for RSCU4x0:
- Up to 4 solenoid valves 12V type S-392T3W, S-982-3W (BERMAD) or similar with a switching time of 80-100 ms
- The duration of the pulse can be adjusted
- Automatic check of valves (serviceable, open, short circuit). The check is performed before each switch of the valve position
- Remote control using LoRa protocol version 1.0.4. Four operating modes: from maximum response (reaction time 2-3s) to maximum energy saving
- 128x64 LED display for local display of controller and load diagnostic information for field installation and maintenance procedures
- A physical reset button on the controller board
- Physical button to start the check procedure of the connected valves
- The communication protocol implements reliable data transmission, including retransmission if possible
- Non-standard expansion boards for connecting additional sensors and actuators
- Saving the configuration in non-volatile memory
- RS485 interface. Encrypted data transfer protocol
- Very low power consumption - 8-10μA in standby mode
- Convenient location of connectors on the board
- Full-featured API for the IoTivity platform or third-party integrations
